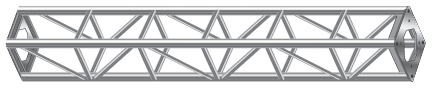

2.0" Heavy Duty Square Truss
- All members aluminum alloy 6061-T6
- Top and bottom chords are 2" dia. x 0.125" tubes
- Diagonal & Inner vertical braces are 1" dia. x 0.125" tubes
- All end connetion bolts 5/8" - Grade 8
- Maximum deflection ≤ length (inches)/240
ALLOWABLE LOAD DATA
| |
Uniformly Distributed Load (MAX) |
Center Point Load (MAX) |
| Length (ft) | lbs / ft | lbs | lbs |
| 10 | 446 | 4460 | 2400 |
| 20 | 105 | 2100 | 1048 |
| 30 | 45 | 1350 | 780 |
| 40 | 21 | 840 | 426 |
2.0" Heavy Duty Triangular Truss
- All members aluminum alloy 6061-T6
- Top and bottom chords are 2" dia. x 0.125" tubes
- Diagonal & Inner vertical braces are 1" dia. x 0.125" tubes
- All end connetion bolts 5/8" - A307
- Maximum deflection ≤ length (inches)/240
ALLOWABLE LOAD DATA
| |
Uniformly Distributed Load (MAX) |
Center Point Load (MAX) |
| Length (ft) | lbs / ft | lbs | lbs |
| 10 | 415 | 4150 | 2075 |
| 20 | 34 | 680 | 338 |
| 30 | 15 | 450 | 329 |
| 40 | 6 | 240 | 120 |
2.0" Heavy Duty Ladder Truss
- All members aluminum alloy 6061-T6
- Top and bottom chords are 2" dia. x 0.125" tubes
- Diagonal & Inner vertical braces are 1" dia. x 0.125" tubes
- All end connetion bolts 5/8" - Grade 8
- Maximum deflection ≤ length (inches)/240
