GLOBAL TRUSS PRODUCT LINE


GLOBAL TRUSS PRODUCTS

F14 Range - 4 Inch Square Box Truss

3.9 inch / 100mm OD, 3/4 inch / 20mm OD tube

F14 is a range of smaller, square truss generally used for exhibitions, displays and other retail applications. It's low profile and low weight make it the perfect unobtrusive support structure.


STRAIGHT SECTIONS

Part NumberDescriptionWeightPrice
F1405019.7 Inches / 50cm2.2 lbs / 1kg$122.02
F1410039.3 Inches / 100cm4.4 lbs / 2kg$159.57
F1415059 Inches / 150cm 6.6 lbs / 3kg$196.26
F1420078.7 Inches / 200cm 8.8 lbs / 4kg$223.99
F1425098.4 Inches / 250cm 11.0 lbs / 5kg$258.13
F14300118.1 Inches / 300cm 13.2 lbs / 6kg$296.53


CURVED SECTIONS

Part NumberDescriptionWeightPrice
F14R10-906.5 ft / 2m dia. circle - 90 degree section5.3 lbs / 2.4kg
F14R15-909.8 ft / 3m dia. circle - 90 degree section7.9 lbs / 3.6kg
F14R20-4513.1 ft / 4m dia. circle - 45 degree section6.6 lbs / 3kg


CORNER PIECES

Part NumberDescriptionWeightPrice

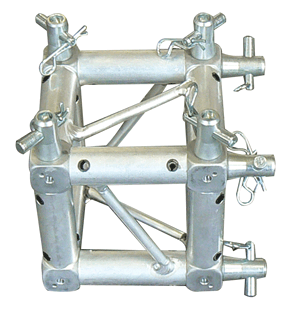

F14BOX6 Way Box corner c/w 8 couplers2 lbs / 0.9kg$196.26
F14BOOKVariable angle, folding book corner; 0-180 degrees2 lbs / 0.9kg


ACCESSORIES
